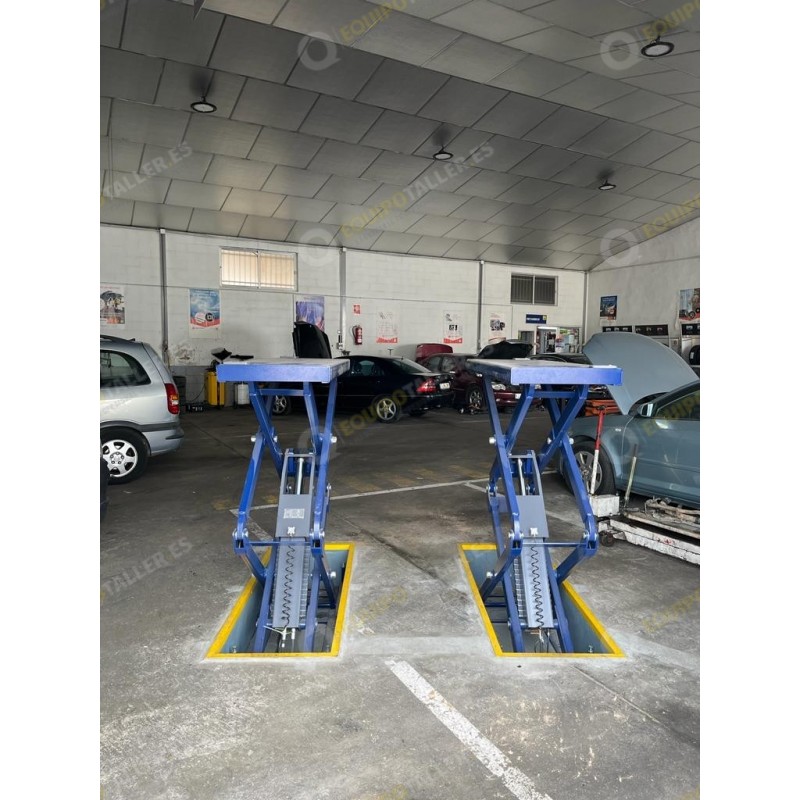

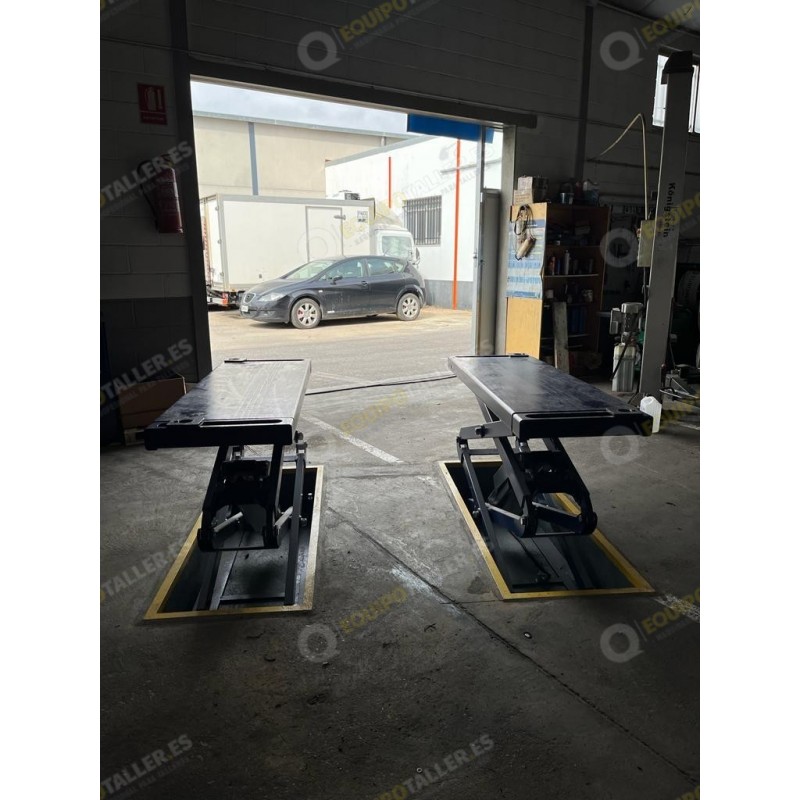

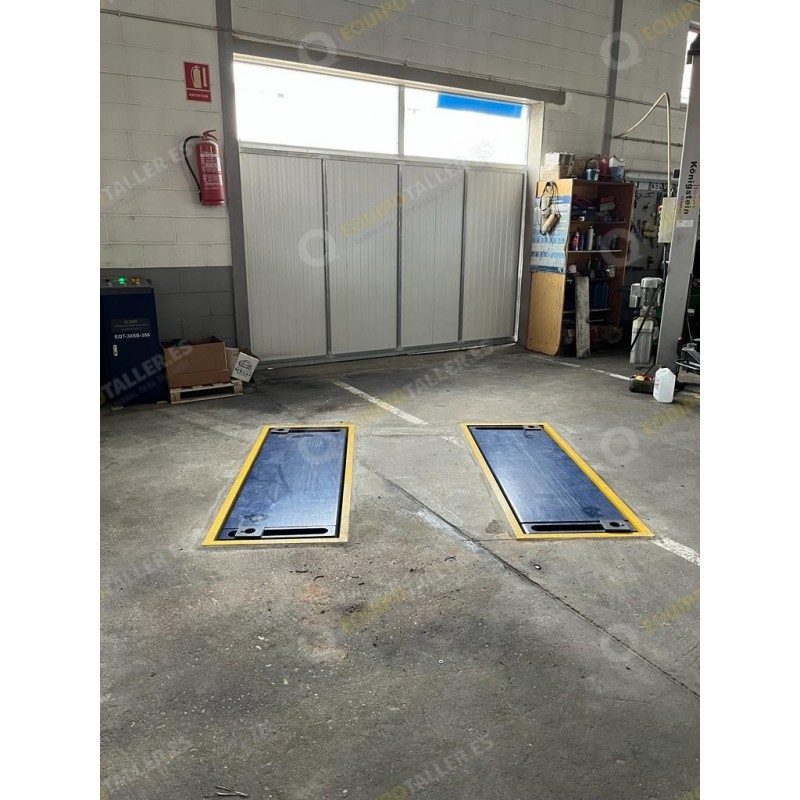

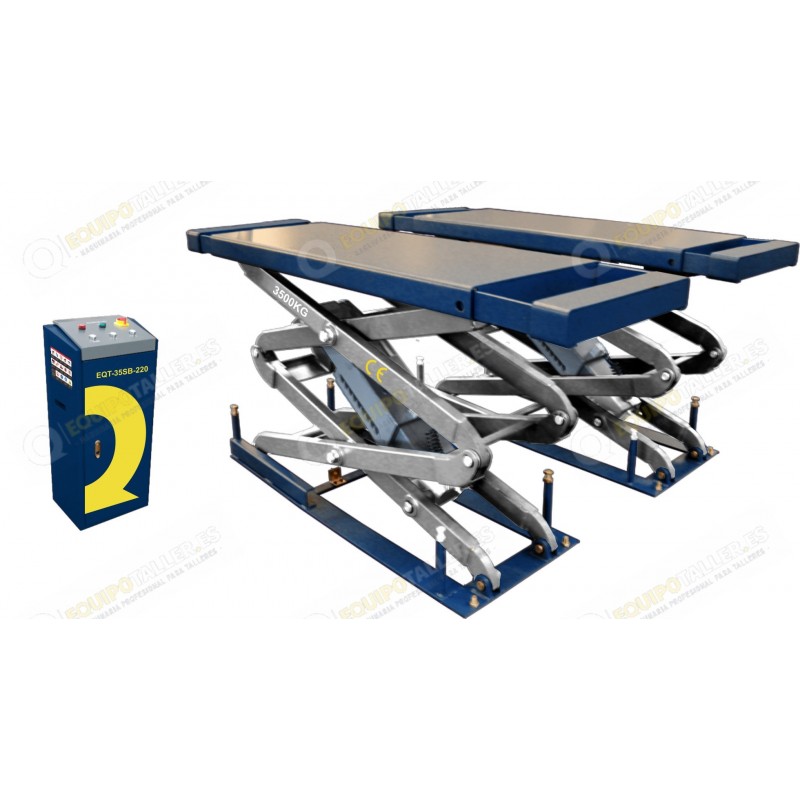

Scissor Lift built-in

€2,843.50
Tax included
€2,350.00 Tax excluded

Scissor lifts are a good choice for use in vehicle testing, maintenance and conservation of different types of small cars.

FUNCTIONS AND C…

+ More info
10/EQT-30SB-220
0
Quantity
Out-of-Stock


Scissor lifts are a good choice for use in vehicle testing, maintenance and conservation of different types of small cars.

FUNCTIONS AND CHARACTERISTICS OF EQUIPMENT:

• Use fine scissors structure that make the occupation under ground is reduced
• separate control box. Low voltage controls (24V) provide strong security.
• synchronization is performed by platforms cylinders in phase.
• Double own mechanical safety mechanism and locking teeth.
• safety valve case of hydraulic failure or overload
• Shock valve device and for cases of breakage or explosion in the cylinder or a pipe.
• Volumetric-Hydraulic synchronization of the hydraulic cylinder.
• Optimized for mounting and dismounting and maintenance of the vehicle chassis.
• Level control with integrated photocell device
• Mechanism and alarm for the full descent of the platforms.
• emergency device for lowering the platforms in case of power failure.
• Regulations and European approvals.



The car lift is provided without any liquid.



TECHNICAL CHARACTERISTICS:

Feeding

AC 400 o 230V 65/50HZ

Power

2.2 Kw

Load Capacity

3.000 Kg

System Type

Hydro electric

Type release

Automatic

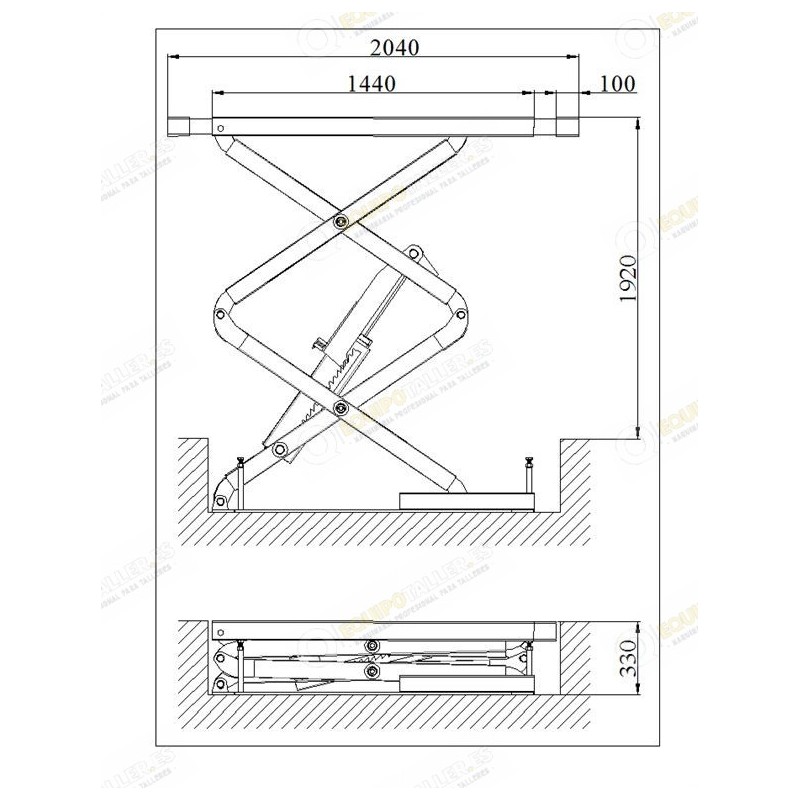

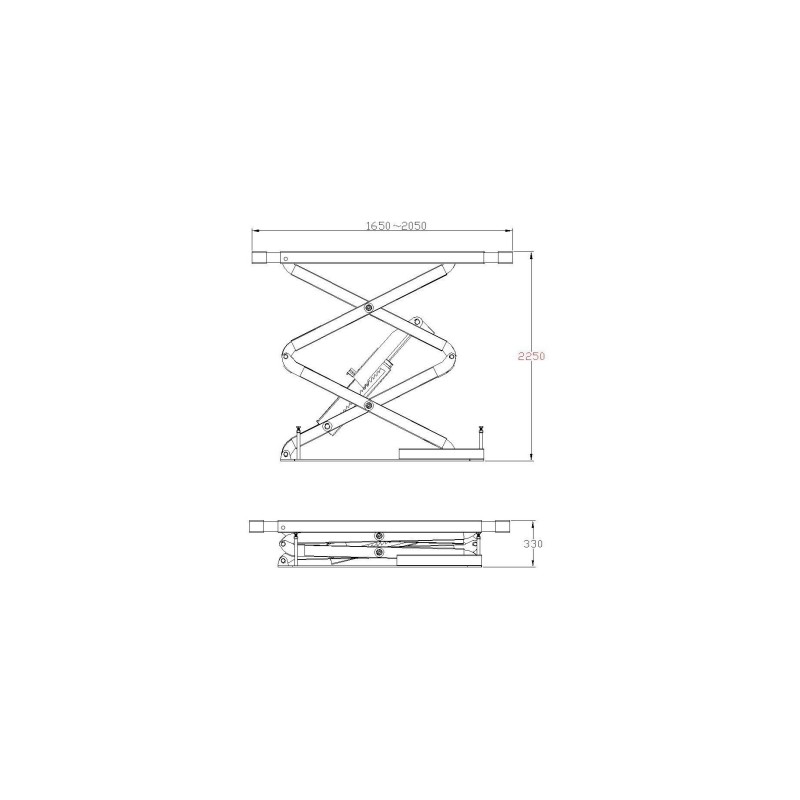

Maximum lifting height

2.030 mm

Unit legth

1.440 mm, 1.740 mm (arms outstretched)

Overall height

1.940 mm

Unit width

550 mm

Rise time

<60 s

Lowering time

>60 s
Noise level

< 76 db(A)
Weight

700 kg


REQUIREMENTS
The installation of this equipment should be in a perfectly level.

NOTE
The customer agrees to dispose of the material appropriate for the download of this special machinery safely.

Not responsible for reservations to the download you can have the carrier.
